Name: Spherical Roller Thrust Bearings
SKU: 0

PRODUCTS



HOME > PRODUCTS > Spherical Roller Thrust Bearings

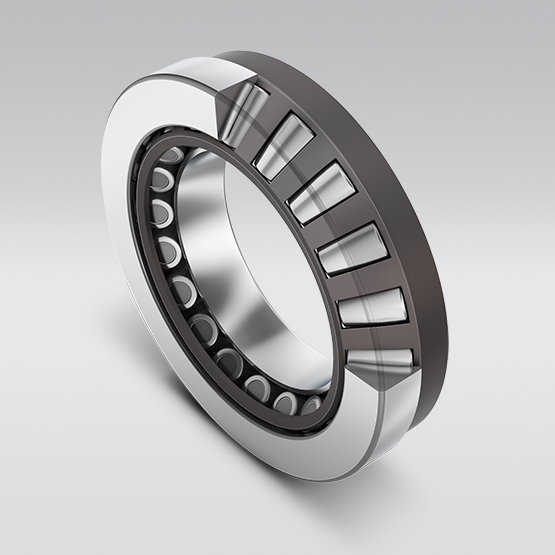

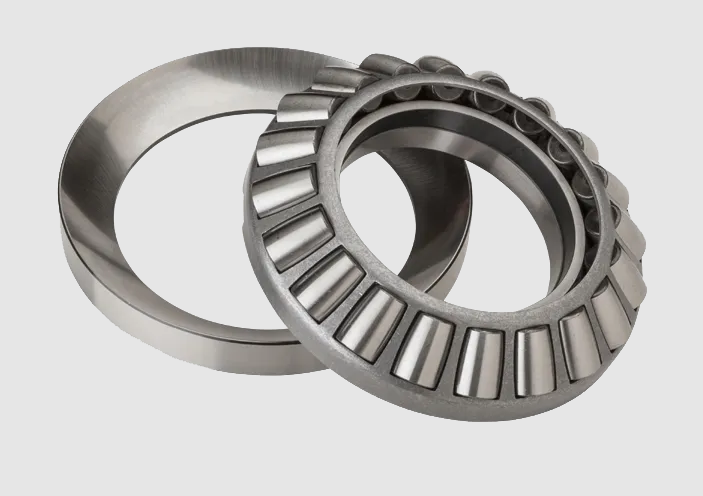

Spherical Roller Thrust Bearings

+8653186421919

+8618615252542

sales@focusbearing.com

MESSAGE

FEATURES

APPLICATIONS

MANUFACTURERS

Spherical Roller Thrust Bearings Models

Designation	Bore diameter	Outside diameter	Height	Basic dynamic load rating	Limiting speed
	[mm]	[mm]	[mm]	[KN]	[r/min]
292/630 EM	630	850	132	4770	670
292/800 EM	800	1060	155	6560	530
29284	420	580	95	1990	1000
293/630 EM	630	950	190	8450	600
29320 E	100	170	42	465	3600
29322 E	110	190	48	610	3200
29328 E	140	240	60	980	2600
29364E	320	500	109	3350	1200
29368	340	540	122	2710	1100
294/630 EM	630	1090	280	14400	500
29420E	100	210	67	980	3000
29426E	130	270	85	1560	2400
29452E	260	480	132	4050	1300
29484 EM	420	730	185	7800	850
29488 EM	440	780	206	9000	750
292/530 EM	530	710	109	3110	850
29252	260	360	60	817	1700
29260	300	420	73	1070	1400
29280	400	540	85	1610	1100
293/800 EM	800	1180	230	11300	450
29332E	160	270	67	1180	2200
29344E	220	360	85	2000	1700
29348 E	240	380	85	2040	1600
29352E	260	420	95	2550	1400
294/500 EM	500	870	224	9370	670
294/600 EM	600	1030	258	13100	530
294/750 EF	750	1280	315	18700	400
29415E	75	160	51	600	4000
29417E	85	180	58	735	3600
29428E	140	280	85	1630	2400
29430E	150	300	90	1860	2200
29432E	160	320	95	2080	2000
29472 EM	360	640	170	6200	950
29476 EM	380	670	175	6800	900
29496 EM	480	850	224	9550	670
292/560	560	750	115	2990	800
29236E	180	250	42	495	2600
29256	280	380	60	863	1700
29288	440	600	95	2070	1000
29292	460	620	95	2070	950
293/530 EM	530	800	160	5870	750
293/710 EM	710	1060	212	9950	500
29318E	90	155	39	400	4000
29324E	120	210	54	765	2800
29336E	180	300	73	1430	2000
29388 EM	440	680	145	5200	850
294/850 EF	850	1440	354	23900	340
294/950 EF	950	1600	390	28200	280
29418E	90	190	60	815	3400
29434E	170	340	103	2360	1900
29436E	180	360	109	2600	1800
29456E	280	520	145	4900	1200
29464E	320	580	155	5700	1100
29468 E	340	620	170	6700	1000
29230 E	150	215	39	408	2800
29244E	220	300	48	690	2200
29272	360	500	85	1460	1200
293/500	500	750	150	4490	800
29317E	85	150	39	380	4000
29326E	130	225	58	865	2600
29330 E	150	250	60	1000	2400
29334E	170	280	67	1200	2200
29338 E	190	320	78	1630	1900
29340E	200	340	85	1860	1700
29356E	280	440	95	2550	1400
29360 E	300	480	109	3100	1200
29372	360	560	122	2760	1100
29376	380	600	132	3340	1000
29380	400	620	132	3450	950
294/1000 EF	1000	1670	402	31100	260
294/560 EM	560	980	250	12000	560
29413E	65	140	45	455	4800
29416E	80	170	54	670	3800
29424E	120	250	78	1370	2600
29438 E	190	380	115	2850	1700
29448 E	240	440	122	3400	1500
29480 EM	400	710	185	7650	850
29492 EM	460	800	206	9300	750
292/500	500	670	103	2390	900
292/600 EM	600	800	122	3740	700
29240E	200	280	48	656	2200
29248	240	340	60	799	1800
29264	320	440	73	1110	1400
29268	340	460	73	1130	1300
29276	380	520	85	1580	1100
29296	480	650	103	2350	900
29384	420	650	140	3740	900
29392	460	710	150	4310	800
294/530 EM	530	920	236	10500	630
294/670 EM	670	1150	290	15400	450
294/710 EF	710	1220	308	17600	430
294/800 EF	800	1360	335	20200	360
294/900 EF	900	1520	372	26700	300
29412E	60	130	42	390	5000
29414E	70	150	48	520	4300
29422 E	110	230	73	1180	2800
29440E	200	400	122	3200	1600
29444E	220	420	122	3350	1500
29460E	300	540	145	5000	1200

Here are examples of applications in which spherical roller thrust bearings might be used:
