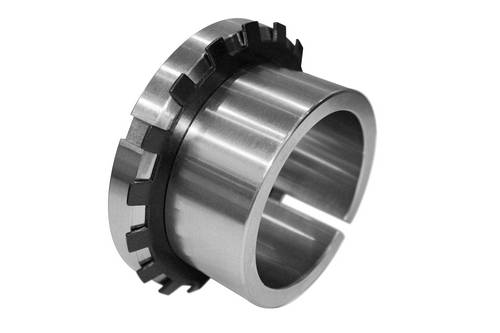

Adapter Sleeves

+8653186421919

+8618615252542

sales@focusbearing.com

MESSAGE

FEATURES

APPLICATIONS

MANUFACTURERS

Adapter Sleeves Models

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 209	40	33	M45x1.5
H 211	50	37	M55x2
H 2307	30	43	M35x1.5
H 2308	35	46	M40x1.5
H 2316	70	78	M80x2
H 2322 E	100	105	M110x2
H 2324	110	112	M120x2
H 2324E	110	112	M120x2
H 2340	180	176	M200x3
H 2348	220	199	Tr 240x4
H 3032	140	93	M160x3
H 3032E	140	93	M160x3
H 3036	160	109	M180x3
H 3040	180	120	M200x3
H 3048	220	133	Tr 240x4
H 305	20	29	M25x1.5
H 305C	20	29	M25x1.5
H 3052	240	145	Tr 260x4
H 309	40	39	M45x1.5
H 3134L	150	122	M170x3
H 3156	260	195	Tr 280x4
H 317	75	63	M85x2
H 317E	75	63	M85x2
H 322E	100	77	M110x2

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 3936	160	87	M180x3
HA 207	30.163	29	M 35x1.5
HA 2317	74.613	82	M 85x2
HA 2340	182.563	176	M 200x3
HA 3024	106.363	72	M120x2
HA 309	36.513	39	M45x1.5
HA 310	42.863	42	M50x1.5
HA 310 E	42.863	42	M 50x1.5
HA 3126 L	112.713	92	M130x2
HA 3132	138.113	119	M160x3
HA 3158	176.213	141	M190x3
HA 3140	182.563	150	M 200x3
HA 317	74.613	63	M85x2
HE 206	25.4	27	M 30x1.5
HE 209	38.1	33	M 45x1.5
HE 2305	19.05	35	M 25x1.5
HE 2311 B	50.8	59	W 55x1/19
HE 2318	82.55	86	M90x2
HE 2328	127	131	M 140x2
HE 2340	177.8	176	M 200x3
HE 3128	127	97	M140x2
HE 319	82.55	68	M 95x2
OH 2344 H	200	186	Tr 220x4
OH 30/530 H	500	265	Tr530x6

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OH 3048 HE	220	133	Tr240x4
OH 3052 HE	240	145	Tr260x4
OH 3080 H	380	210	Tr400x5
OH 3084 H	400	212	Tr420x5
OH 31/600 H	560	399	Tr 600x6
OH 3148 H	220	172	Tr240x4
OH 3160 HE	280	208	Tr 300x4
OH 3176 H	360	264	Tr 380x5
OH 3176 HE	360	264	Tr 380x5
OH 3184 H	400	304	Tr 420x5
OH 3264 H	300	258	Tr 320x5
OH 3268 H	320	288	Tr 340x5
OH 39/1060 H	1000	372	Tr 1060x8
OH 39/710 H	670	286	Tr 710x7
OH 3948 H	220	101	Tr 240x4
OH 3984 HE	400	168	Tr 420x5
OSNP 3056X9.15/16	252.413	156.997
OSNP 3064X11.1/2 HB	292.1	176.174
OSNP 3064X11.15/16	303.213	176.174
OSNP 3064X12.	304.8	176.174
OSNP 3068X12.1/2	317.5	191.338
OSNP 3152X9.7/16	239.713	192.608
OSNP 3164X12.	304.8	251.165
OSNP 3168X12.1/2	317.5	248.336

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OSNP 3184X15.3/4	400.05	289.611
OSNW 136X6.7/16	165.513	163.728
OSNW 32X5.7/16	138.113	116.027
OSNW 44X7.1/2	190.5	149.631
SNP 148X8.1/2	215.9	205.715
SNP 152X9.7/16	239.713	222.606
SNP 3048X8.15/16	227.013	137.719
SNP 3056X10.1/2	266.7	156.997
SNP 3060X10.15/16	277.813	170.612
SNP 3064X11.15/16	303.213	176.174
SNP 3088X16	406.4	231.14
SNP 3096X18	457.2	239.928
SNP 3152X9	228.6	192.608
SNP 3168X12.7/16	315.913	248.336
SNP 3172X13.1/2	342.9	250.241
SNP 3176X13.15/16	354.013	255.422
SNP 3180X14.15/16	379.413	265.405
SNP 3256X10	254	227
SNP 3264X12	304.8	263.169
SNW 111X2.	50.8	63.652
SNW 115X2.3/16	55.563	70.129
SNW 115X2.1/2	63.5	78.08
SNW 126X4.7/16	112.713	126.289
SNW 16X2.3/4	69.85	60.096

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 17X2.13/16	71.438	62.89
SNW 17X3	76.2	62.89
SNW 18X3.1/16	77.788	66.954
SNW 18X3.1/4	82.55	66.954
SNW 18X3.1/8	79.375	66.954
SNW 19X3.5/16	84.138	69.85
SNW 21X3.11/16	93.663	75.616
SNW 3024X4.1/4	107.95	74.6
SNW 3032X5.7/16	138.113	94.005
SNW 3034X6.	152.4	101.829
SNW 3126X4.7/16	112.713	95.301
SNW 3136X6.7/16	163.513	127.711
SNW 3138X6.7/8	174.625	133.375
SNW 36X6.5/16	160.338	127.711
SNW 44X7.1/2	190.5	149.631
H 210	45	35	M50x1.5
H 216	70	46	M80x2
H 2305	20	35	M25x1.5
H 2313 E	60	65	M65x2
H 2315	65	73	M75x2
H 2322	100	105	M110x2
H 2324 L	110	112	M120x2
H 2352	240	211	Tr 260x4
H 3028	125	82	M140x2

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 3030	135	87	M150x2
H 3044	200	126	Tr 220x4
H 307 C	30	35	M35x1.5
H 308	35	36	M40x1.5
H 308 E	35	36	M40x1.5
H 3120	90	76	M100x2
H 3126	115	92	M130x2
H 3126 L	115	92	M130x2
H 3136	160	131	M180x3
H 315	65	55	M75x2
H 316	70	59	M80x2
H 3260	280	240	Tr300x4
HA 206	23.813	27	M 30x1.5
HA 217	74.613	50	M 85x2
HA 2313	55.563	65	M 65x2
HA 2315	61.913	73	M 75x2
HA 2318	80.963	86	M90x2
HA 2320 E	87.313	97	M 100x2
HA 2328	125.413	131	M140x2
HA 311 E	49.213	45	M 55x2
HA 3124	106.363	88	M120x2
HA 3126	112.713	92	M130x2
HA 3128	125.413	97	M140x2
HA 3128 E	125.413	97	M140x2

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
HA 313	55.563	50	M65x2
HA 3130	131.763	111	M150x2
HA 315	61.913	55	M75x2
HA 316 E	68.263	59	M 80x2
HA 320	87.313	71	M100x2
HE 205	19.05	26	M 25x1.5
HE 208	31.75	31	M 40x1.5
HE 215	63.5	43	M 75x2
HE 216	69.85	46	M 80x2
HE 2308	31.75	46	M 40x1.5
HE 2315	63.5	73	M 75x2
HE 2322	101.6	105	M110x2
HE 3040	177.8	120	M 200x3
HE 311 BE	50.8	45	W 55x1/19
HE 3122	101.6	81	M 110x2
HE 3136	165.1	131	M180x3
HE 320	88.9	71	M100x2
HE 320 E	88.9	71	M100x2
HE 322 E	101.6	77	M 110x2
HS 308	34.925	36	M 40x1.5
HS 315	66.675	55	M 75x2
OH 30/500 H	470	247	Tr500x5
OH 30/670 H	630	324	Tr670x6
OH 3044 H	200	126	Tr220x4

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OH 3068 H	320	167	Tr340x5
OH 3J/530 H	500	364	Tr 530x6
OH 3J/710 HE	670	467	Tr 710x7
OH 3136 H	160	131	M180x3
OH 3144 HTL	200	161	Tr220x4
OH 3156 HTL	260	195	Tr280x4
OH 3160 H	280	208	Tr 300x4
OH 3164 H	300	226	Tr 320x5
OH 3180 HE	380	272	Tr 400x5
OH 3192 H	430	326	Tr 460x5
OH 32/670 H	630	558	Tr 670x6
OH 3272 H	340	299	Tr 360x5
OH 3280 H	380	328	Tr 400x5
OH 3296 H	450	397	Tr 480x5
OH 39/710 HE	670	286	Tr 710x7
OH 3960 H	280	140	Tr 300x4
OSNP 3048X8.1/2	215.9	137.719
OSNP 3052X9.1/2	241.3	152.629
OSNP 3060X11.	279.4	170.612
OSNP 3064X11.1/2 H/VU100	292.1	176.174
OSNP 3064X11.7/16	290.513	176.174
OSNP 3064X11.7/16 H	290.513	176.174
OSNP 3076X14.	355.6	196.418
OSNP 3084X15.3/4	400.05	215.595

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OSNP 3076X13.15/16	354.013	196.418
OSNP 31/500X18.1/2	469.9	346.888
OSNP 31/600X21 H	533.4	390.855
OSNP 3152X9.1/2	241.3	192.608
OSNP 3168X12.1/4 H	311.15	248.336
OSNP 3196X18.	457.2	322.956
OSNP 3268X12.1/2	317.5	282.346
OSNW 32X5.7/16 H	138.113	116.027
OSNW 34X5.15/16	150.813	122.86
OSNW 38X7.	177.8	133.375
SNP 3048X9	228.6	137.719
SNP 3052X9.7/16	239.713	152.629
SNP 3060X11	279.4	170.612
SNP 3064X11.7/16	290.513	176.174
SNP 3072X13.1/2	342.9	192.253
SNP 3072X13.7/16	341.313	192.253
SNP 3076X14	355.6	196.418
SNP 3080X15	381	213.385
SNP 3148X8.15/16	227.013	168.351
SNP 3148X9	228.6	168.351
SNP 3160X10.15/16	277.813	212.598
SNP 3164X11.15/16	303.213	231.165
SNP 3168X12.1/2	317.5	248.336
SNP 3256X10.7/16	265.113	227

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 130X5.3/16	131.763	142.519
SNW 140X7.3/16	182.563	179.959
SNW 144X8	203.2	183.566
SNW 16X2.5/8	66.675	60.096
SNW 17X2.15/16	74.613	62.89
SNW 22X3.11/16	93.663	81.178
SNW 22X4.	101.6	81.178
SNW 28X4.15/16	125.413	100.863
SNW 3026X4.1/2	114.3	81.966
SNW 3028X4.15/16	125.413	84.582
SNW 3034X5.7/8	149.225	101.829
SNW 3044X7.15/16	201.613	130.048
SNW 30X5.3/16	131.763	107.467
SNW 3126X4.1/2	114.3	95.301
SNW 3134X6.	152.4	122.86
SNW 3136X6.1/2	165.1	127.711
SNW 34X5.7/8	149.225	122.86
SNW 36X6.7/16	163.513	127.711
SNW 38X6.15/16	176.213	133.375
SNW 38X6.7/8	174.625	133.375
SNW 44X7.13/16	198.438	149.631
SNW 44X7.15/16	201.613	149.631
SNW 44X7.7/8	200.025	149.631
SNW 6X15/16	23.813	34.112

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 7X1.1/8	28.575	36.805
SNW 8X1.1/4	31.75	37.948
SNW 8X1.5/16	33.338	37.948
SNW 9X1.5/16	33.338	39.98
H 205	20	26	M25x1.5
H 206	25	27	M30x1.5
H 208	35	31	M40x1.5
H 213	60	40	M65x2
H 219	85	55	M95x2
H 2306	25	38	M30x1.5
H 2308 E	35	46	M40x1.5
H 2311	50	59	M55x2
H 2317	75	82	M85x2
H 2320	90	97	M100x2
H 2324 EH	110	112	M120x2
H 2332	140	147	M160x3
H 2332 L	140	147	M160x3
H 2336	160	161	M180x3
H 2338	170	169	M190x3
H 2344	200	186	Tr 220x4
H 3024	110	72	M120x2
H 3026	115	80	M130x2
H 3034	150	101	M170x3
H 3036 E	160	109	M180x3

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 306 C	25	31	M30x1.5
H 306 E	25	31	M30x1.5
H 3060	280	168	Tr 300x4
H 307	30	35	M35x1.5
H 309 E	40	39	M45x1.5
H 310 E	45	42	M50x1.5
H 311 C	50	45	M55x2
H 3122	100	81	M110x2
H 3124	110	88	M120x2
H 3128 L	125	97	M140x2
H 3134	150	122	M170x3
H 3134 E	150	122	M170x3
H 314 E	60	52	M70x2
H 3140	180	150	M200x3
H 3148	220	172	Tr 240x4
H 3160	280	208	Tr 300x4
H 319	85	68	M95x2
H 320	90	71	M100x2
H 3938	170	89	M190x3
HA 209	36.513	33	M 45x1.5
HA 211	49.213	37	M 55x2
HA 213	55.563	40	M 65x2
HA 216	68.263	46	M 80x2
HA 2307	30.163	43	M 35x1.5

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
HA 3134 E	150.813	122	M 170x3
HA 315 E	61.913	55	M 75x2
HA 316	68.263	59	M80x2
HA 317 E	74.613	63	M 85x2
HE 2310	44.45	55	M 50x1.5
HE 2330	133.35	139	M150x2
HE 2332	139.7	147	M160x3
HE 3030	133.35	87	M 150x2
HE 3032	139.7	93	M 160x3
HE 309 E	38.1	39	M 45x1.5
HE 310 E	44.45	42	M 50x1.5
HE 3126 L	114.3	92	M130x2
HE 313	57.15	50	M65x2
HE 3130	133.35	111	M150x2
OH 2340 H	180	176	M200x3
OH 2356 H	260	224	Tr 280x4
OH 30/800 H	750	366	Tr800x7
OH 30/900 H	850	400	Tr900x7
OH 3052 H	240	145	Tr260x4
OH 31/500 H	470	356	Tr 500x5
OH 31/560 H	530	377	Tr 560x6
OH 3138 H	170	141	M190x3
OH 3140 H	180	150	M200x3
OH 3144 H	200	161	Tr220x4

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
HE 2324	107.95	112	M120x2
HE 2326	114.3	121	M130x2
HE 3024	107.95	72	M 120x2
HE 306	25.4	31	M 30x1.5
HE 309	38.1	39	M 45x1.5
HE 310	44.45	42	M50x1.5
HE 3120	88.9	76	M 100x2
HE 3124	107.95	88	M120x2
HE 3132	139.7	119	M160x3
HE 3140	177.8	150	M 200x3
HE 316	69.85	59	M80x2
HE 317 E	76.2	63	M 85x2
HE 318	82.55	65	M90x2
OH 2332 H	140	147	M160x3
OH 2336 H	160	161	M180x3
OH 2338 H	170	169	M190x3
OH 2348 H	220	199	Tr 240x4
OH 30/560 H	530	282	Tr560x6
OH 30/710 H	670	342	Tr710x7
OH 30/850 H	800	380	Tr850x7
OH 3032 H	140	93	M 160x3
OH 3040 H	180	120	M 200x3
OH 3056 H	260	152	Tr280x4
OH 3064 H	300	171	Tr320x5

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OH 3092 H	430	234	Tr460x5
OH 3096 H	450	237	Tr480x5
OH 31/630 H	600	424	Tr 630x6
OH 31/710 H	670	467	Tr 710x7
OH 3168 H	320	254	Tr 340x5
OH 3172 H	340	259	Tr 360x5
OH 3180 H	380	272	Tr 400x5
OH 3188 H	410	307	Tr 440x5
OH 32/600 H	560	487	Tr 600x6
OH 3956 H	260	121	Tr 280x4
OH 3972 HE	340	144	Tr 360x5
OSNP 148X8.15/16	227.013	205.715
OSNP 3048X8.7/16	214.313	137.719
OSNP 3048X9.	228.6	137.719
OSNP 3056X10.	254	156.997
OSNP 3056X10.1/2	266.7	156.997
OSNP 3068X12.7/16	315.913	191.338
OSNP 3080X15	381	213.385
OSNP 3160X10.15/16	277.813	212.598
OSNP 3172X13.	330.2	250.241
OSNP 3176X14.	355.6	255.422
OSNP 3180X15	381	265.405
OSNP 3188X16.1/2	419.1	300.152
OSNP 32/500X18.1/2	469.9	418.871

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OSNP 3256X10 H	254	227
OSNP 3276X14.	355.6	301.422
OSNW 3040X7 H	177.8	120.396
OSNW 30X5.3/16	131.763	107.467
OSNW 36X6.7/16	163.513	127.711
OSNW 38X7/VU150	177.8	133.375
OSNW 44X7.15/16	201.613	149.631
OSNW 44X8.	203.2	149.631
SNP 148X8.15/16	227.013	205.715
SNP 3048X8.7/16	214.313	137.719
SNP 3048X8.765	222.631	137.719
SNP 3056X10	254	156.997
SNP 3056X10.7/16	265.113	156.997
SNP 3064X11.1/2	292.1	176.174
SNP 3068X12.1/2	317.5	191.338
SNP 3068X12.7/16	315.913	191.338
SNP 3080X14.15/16	363.538	213.385
SNP 3152X9.1/2	241.3	192.608
SNP 3156X10.1/2	266.7	197.002
SNP 3180X15	381	265.405
SNP 3188X16.1/2	419.1	300.152
SNP 3280X15	381	321.412
SNW 111X1.15/16	49.213	63.652
SNW 115X2.3/8	60.325	78.08

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 206	25	27	M30x1.5
H 208	35	31	M40x1.5
H 213	60	40	M65x2
H 219	85	55	M95x2
H 2306	25	38	M30x1.5
H 2308 E	35	46	M40x1.5
H 2311	50	59	M55x2
H 2317	75	82	M85x2
H 2320	90	97	M100x2
H 2324 EH	110	112	M120x2
H 2332	140	147	M160x3
H 2332 L	140	147	M160x3
H 2336	160	161	M180x3
H 2338	170	169	M190x3
H 2344	200	186	Tr 220x4
H 3024	110	72	M120x2
H 3026	115	80	M130x2
H 3034	150	101	M170x3
H 3036 E	160	109	M180x3
H 306 C	25	31	M30x1.5
H 306 E	25	31	M30x1.5
H 3060	280	168	Tr 300x4
H 307	30	35	M35x1.5
H 309 E	40	39	M45x1.5

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 3138X6.15/16	176.213	133.375
SNW 3144X8.	203.2	149.631
SNW 32X5.3/8	136.525	116.027
SNW 34X5.15/16	150.813	122.86
SNW 36X6.1/2	165.1	127.711
SNW 40X7.1/4	184.15	139.04
SNW 40X7.3/16	182.563	139.04
SNW 5X3/4	19.05	31.979
SNW 7X1.1/4	31.75	36.805
SNW 9X1.3/8	34.925	39.98
H 204	17	24	M20x1
H 212	55	38	M60x2
H 215	65	43	M75x2
H 217	75	50	M85x2
H 218	80	52	M90x2
H 2312	55	62	M60x2
H 2313	60	65	M65x2
H 2314	60	68	M70x2
H 2318 E/L73	80	73	M90x2
H 2319	85	90	M95x2
H 2320 E	90	97	M100x2
H 2326	115	121	M130x2
H 2356	260	224	Tr 280x4
H 3030 E	135	87	M150x2

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 305 E	20	29	M25x1.5
H 310	45	42	M50x1.5
H 311	50	45	M55x2
H 311 E	50	45	M55x2
H 313	60	50	M65x2
H 313 C	60	50	M65x2
H 313 E	60	50	M65x2
H 3130 L	135	111	M150x2
H 3132 L	140	119	M160x3
H 3138	170	141	M190x3
H 3138 L	170	141	M190x3
H 314	60	52	M70x2
H 3144	200	161	Tr 220x4
H 320 E	90	71	M100x2
H 322	100	77	M110x2
HA 220	87.513	58	M100x2
HA 2309	36.513	50	M 45x1.5
HA 2311	49.213	59	M 55x2
HA 2316	68.263	78	M 80x2
HA 2326 L	112.713	121	M130x2
HA 2332	138.113	147	M160x3
HA 2334	150.813	154	M170x3
HA 3030	131.763	87	M150x2
HA 3038	176.213	112	M190x3

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
HA 3040	182.563	120	M 200x3
HA 309 E	36.513	39	M 45x1.5
HA 311	49.213	45	M55x2
HA 3126 E	112.713	92	M 130x2
HA 3128 L	125.413	97	M140x2
HA 3134	150.813	122	M170x3
HA 3134 E	150.813	122	M 170x3
HA 315 E	61.913	55	M 75x2
HA 316	68.263	59	M80x2
HA 317 E	74.613	63	M 85x2
HE 2310	44.45	55	M 50x1.5
HE 2330	133.35	139	M150x2
HE 2332	139.7	147	M160x3
HE 3030	133.35	87	M 150x2
HE 3032	139.7	93	M 160x3
HE 309 E	38.1	39	M 45x1.5
HE 310 E	44.45	42	M 50x1.5
HE 3126 L	114.3	92	M130x2
HE 313	57.15	50	M65x2
HE 3130	133.35	111	M150x2
OH 2340 H	180	176	M200x3
OH 2356 H	260	224	Tr 280x4
OH 30/800 H	750	366	Tr800x7
OH 30/900 H	850	400	Tr900x7

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OH 3052 H	240	145	Tr260x4
OH 31/500 H	470	356	Tr 500x5
OH 31/560 H	530	377	Tr 560x6
OH 3138 H	170	141	M190x3
OH 3140 H	180	150	M200x3
OH 3144 H	200	161	Tr220x4
OH 3152 H	240	190	Tr260x4
OH 3172 HE	340	259	Tr 360x5
OH 3196 H	450	335	Tr 480x5
OH 3284 H	400	352	Tr 420x5
OH 39/560 HE	530	227	Tr 560x6
OH 39/630 H	600	254	Tr 630x6
OH 3944 H	200	96	Tr 220x4
OH 3964 H	300	140	Tr 320x6
OSNP 3052X9.7/16	239.713	152.629
OSNP 3060X10.15/16	277.813	170.612
OSNP 3064X11.1/2	292.1	176.174
OSNP 3068X12.1/2/VU100	317.5	191.338
OSNP 3072X13.7/16	341.513	192.253
OSNP 3076X13.15/16	354.013	196.418
OSNP 31/500X18.1/2	469.9	346.888
OSNP 31/600X21 H	533.4	390.855
OSNP 3152X9.1/2	241.3	192.608
OSNP 3168X12.1/4 H	311.15	248.336

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OSNW 38X7/VU150	177.8	133.375
OSNW 44X7.15/16	201.615	149.631
OSNW 44X8.	203.2	149.631
SNP 148X8.15/16	227.013	205.715
SNP 3048X8.7/16	214.313	137.719
SNP 3048X8.765	222.631	137.719
SNP 3056X10	254	156.997
SNP 3056X10.7/16	265.113	156.997
SNP 3064X11.1/2	292.1	176.174
SNP 3068X12.1/2	317.5	191.338
SNP 3068X12.7/16	315.913	191.338
SNP 3080X14.15/16	363.538	213.385
SNP 3152X9.1/2	241.3	192.608
SNP 3156X10.1/2	266.7	197.002
SNP 3180X15	381	265.405
SNP 3188X16.1/2	419.1	300.152
SNP 3280X15	381	321.412
SNW 111X1.15/16	49.213	63.652
SNW 115X2.3/8	60.325	78.08
SNW 116X2.3/4	69.85	81.128
SNW 118X3.1/4	82.55	89.992
SNW 118X3.3/16	80.963	89.992
SNW 11X1.15/16	46.038	46.609
SNW 120X3.3/8	85.725	100.609

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 11X1.7/8	47.625	46.609
SNW 11X2.	50.8	46.609
SNW 13X2.3/16	55.563	53.086
SNW 144X7.15/16	201.613	184.836
SNW 15X2.1/2	63.5	58.064
SNW 15X2.7/16	61.913	58.064
SNW 16X2.11/16	68.263	60.096
SNW 20X3.7/16	87.313	72.619
SNW 22X3.15/16	100.013	81.178
SNW 24X4.3/16	106.363	87.782
SNW 26X4.5/16	109.538	95.301
SNW 28X4.7/8	123.825	100.863
SNW 3030X5.3/16	131.763	88.443
SNW 3032X5.1/2	139.7	94.005
SNW 3034X5.15/16	150.813	101.829
SNW 3036X6.1/2	165.1	109.906
SNW 3036X6.7/16	163.513	109.906
SNW 3040X7.	177.8	120.396
SNW 3040X7.1/8	180.975	120.396
SNW 3044X7.3/4	196.85	130.048
SNW 3044X7.7/8	200.025	130.048
SNW 30X5.1/4	133.35	107.467
SNW 3132X5.1/2	139.7	116.027
SNW 3140X7.3/16	182.563	139.04

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 3144X7.15/16	201.613	149.631
SNW 32X5.1/2	139.7	116.027
SNW 32X5.3/4	146.05	116.027
SNW 44X8.	203.2	149.631
SNW 8X1.3/8	34.925	37.948
H 207	30	29	M35x1.5
H 220	90	58	M100x2
H 222	100	63	M110x2
H 2309	40	50	M45x1.5
H 2310	45	55	M50x1.5
H 2318	80	86	M90x2
H 2326 L	115	121	M130x2
H 2328	125	131	M140x2
H 2330	135	139	M150x2
H 2334	150	154	M170x3
H 3034 E	150	101	M170x3
H 3038	170	112	M190x3
H 3056	260	152	Tr 280x4
H 306	25	31	M30x1.5
H 307 E	30	35	M35x1.5
H 308 C	35	36	M40x1.5
H 309 C	40	39	M45x1.5
H 310 C	45	42	M50x1.5
H 312	55	47	M60x2

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
H 312 E	55	47	M60x2
H 3128	125	97	M140x2
H 3130	135	111	M150x2
H 3130 E	135	111	M150x2
H 3132	140	119	M160x3
H 3136 L	160	131	M180x3
H 315 E	65	55	M75x2
H 3152	240	190	Tr 260x4
H 316 E	70	59	M80x2
H 318	80	65	M90x2
H 318 E	80	65	M90x2
H 3940	180	98	M200x3
HA 210	42.863	35	M 50x1.5
HA 215	61.913	43	M 75x2
HA 218	80.963	52	M 90x2
HA 2310	42.863	55	M 50x1.5
HA 2332 L	138.113	147	M160x3
HA 3036	163.513	109	M 180x3
HA 307	30.163	35	M35x1.5
HA 3132 E	138.113	119	M 160x3
HA 3134 L	150.815	122	M170x3
HA 3136	163.513	131	M180x3
HA 3136 L	163.513	131	M180x3
HA 318 E	80.963	65	M 90x2

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
HA 320 E	87.313	71	M 100x2
HE 211 B	50.8	37	W 55x1/19
HE 217	76.2	50	M 85x2
HE 218	82.55	52	M 90x2
HE 2316	69.85	78	M 80x2
HE 2317	76.2	82	M 85x2
HE 2320	88.9	97	M100x2
HE 3026	114.3	80	M 130x2
HE 305	19.05	29	M 25x1.5
HE 308	31.75	36	M 40x1.5
HE 311 B	50.8	45	W 55x1/19
HE 3126	114.3	92	M130x2
HE 3128 L	127	97	M140x2
HE 3130 L	133.35	111	M150x2
HE 3134	152.4	122	M170x3
HE 3134 L	152.4	122	M170x3
HE 3138	171.45	141	M 190x3
HE 315	63.5	55	M75x2
HE 315 E	63.5	55	M 75x2
HE 317	76.2	63	M85x2
HE 322	101.6	77	M110x2
OH 2352 H	240	211	Tr 260x4
OH 30/630 H	600	301	Tr630x6
OH 3036 H	160	109	M 180x3

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OH 3048 H	220	133	Tr240x4
OH 3060 H	280	168	Tr300x4
OH 3072 H	340	188	Tr360x5
OH 3076 H	360	193	Tr380x5
OH 3088 H	410	228	Tr440x5
OH 31/750 HE	710	493	Tr 750x7
OH 3132 H	140	119	M160x3
OH 3134 H	150	122	M170x3
OH 3148 HTL	220	172	Tr240x4
OH 3152 HTL	240	190	Tr260x4
OH 3156 H	260	195	Tr280x4
OH 3168 HE	320	254	Tr 340x5
OH 3260 H	280	240	Tr 300x4
OH 3276 H	360	310	Tr 380x5
OH 3288 H	410	361	Tr 440x5
OH 3292 H	450	382	Tr 460x5
OH 39/900 H	850	326	Tr 900x7
OH 3952 H	240	116	Tr 260x4
OH 3968 H	320	144	Tr 340x5
OSNP 152X9.7/16	239.713	222.606
OSNP 3048X8.15/16	227.013	137.719
OSNP 3056X10.7/16	265.113	156.997
OSNP 3088X16.1/2	419.1	231.14
OSNP 3148X9	228.6	168.351

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
OSNP 3156X10.1/2	266.7	197.002
OSNP 3156X10.7/16	265.113	197.002
OSNW 28X4.15/16	125.413	100.863
OSNW 3044X7.15/16	201.613	130.048
OSNW 34X6.	152.4	122.86
OSNW 36X6.1/2	165.1	127.711
OSNW 38X6.15/16	176.213	133.375
SNP 148X9	228.6	168.351
SNP 152X9	228.6	222.606
SNP 3048X8.1/2	215.9	137.719
SNP 3052X9.1/2	241.3	152.629
SNP 3072X13.	330.2	192.253
SNP 3084X15.3/4	400.05	215.595
SNP 3156X10	254	197.002
SNP 3160X11	277.813	212.598
SNP 3164X12	304.8	231.165
SNP 3172X13.7/16	341.313	250.241
SNP 3184X15.3/4	400.05	289.611
SNP 3260X10.15/16	277.813	244.602
SNP 3264X11.1/2	292.1	263.169
SNP 3276X14	355.6	301.422
SNW 109X1.1/2	38.1	53.924
SNW 109X1.7/16	36.513	53.924
SNW 10X1.3/4	44.45	44.577

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 110XL11/16	42.863	60.554
SNW 111XL7/8	47.625	63.652
SNW 112X2.1/16	52.388	67.285
SNW 113X2.1/4	57.15	70.129
SNW 116X2.11/16	68.263	81.128
SNW 117X2.15/16	74.613	83.871
SNW 120X3.1/2	88.9	100.609
SNW 122X3.15/16	100.013	110.185
SNW 128X5.	127	134.95
SNW 134X5.13/16	147.638	156.921
SNW 134X5.15/16	150.813	156.921
SNW 134X6.	152.4	156.921
SNW 136X6.7/16	163.513	163.728
SNW 138X6.15/16	176.213	171.399
SNW 13X2.	50.8	53.086
SNW 13X2.1/4	57.15	53.086
SNW 13X2.1/8	53.975	53.086
SNW 13X2.5/16	58.738	53.086
SNW 17X2.7/8	73.025	62.89
SNW 20X3.3/8	85.725	72.619
SNW 22X3.7/8	98.425	81.178
SNW 24X4.1/4	107.95	87.782
SNW 26X4.1/2	114.3	95.301
SNW 26X4.3/8	111.125	95.301

Designation	Bore diameter	Width	Thread designation
	[mm]	[mm]
SNW 28X5.	127	100.863
SNW 3024X4.3/16	106.363	74.6
SNW 3026X4.7/16	112.713	81.966
SNW 3038X7.	177.8	111.811
SNW 3040X7.3/16	182.563	120.396
SNW 3044X8.	203.2	130.048
SNW 3122X3.15/16	100.013	81.178
SNW 3128X4.15/16	125.413	100.863
SNW 3128X5.	127	100.863
SNW 3130X5.3/16	131.763	107.467
SNW 3132X5.7/16	138.113	116.027
SNW 32X5.7/16	138.113	116.027
SNW 34X5.13/16	147.638	122.86
SNW 34X6.	152.4	122.86
SNW 38X7.	177.8	133.375
SNW 6X1.	25.4	34.112
SNW 7X1.3/16	30.163	36.805
SNW 9X1.1/2	38.1	39.98
SNW 9X1.7/16	36.513	39.98

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts.

They are easy to install and require no additional location on the shaft. When used on plain shafts,

the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, the bearing can be accurately positioned axially,

thereby facilitating bearing mounting and dismounting.

MESSAGE

SIMILAR RECOMMENDED

+8653186409399

sales@focusbearing.com

+8618615252542
