Railway Gearbox Bearings

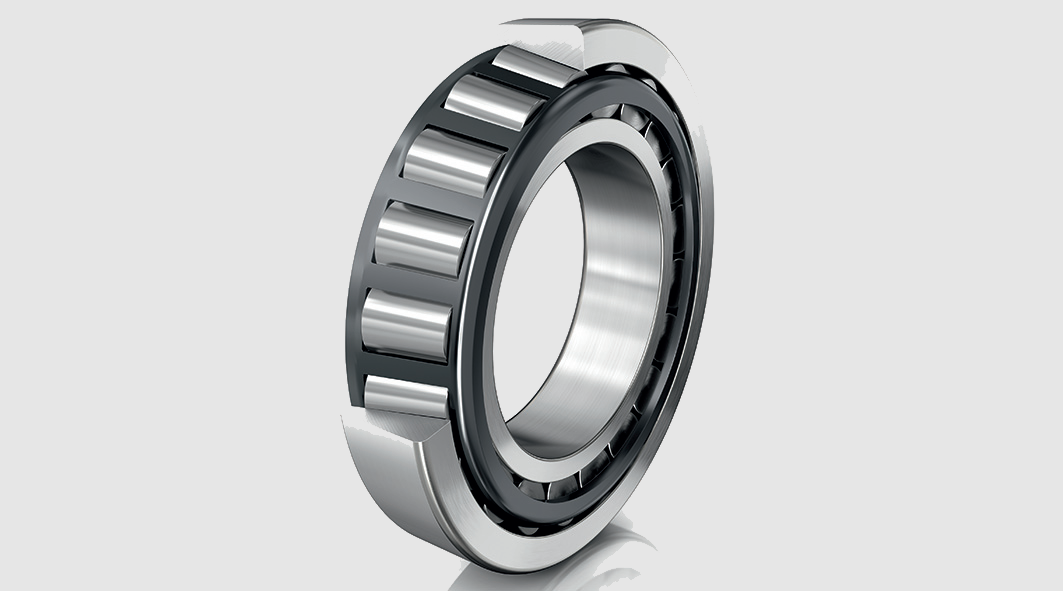

Tapered Roller Bearings


Dimension table · Dimensions in mm
DesignationMass

m

≈ kg		Dimensions

d                        D                           B                            C                             T		Basic load ratings
Limiting
speed
n

min
dyn.
C
N		stat.
C0
N
T7FC045-XL-S19345 95 26520 29 105000 109000 8100
T7FC055-XL-S115955 115 31 23534 152000 165000 6600
T7FC060-XL-S120360 125 33526 37 181000 200000 6100
31313-XL-S123665 140 33 23 36 193000 188000 5500
T7FC070-XL-S126370 140 35527 39 208000 237000 5300
31315-XL-S134675 160 37 26 40 240000 236000 4850
F-808708.32016-X-XL-S1-H14412880 125 29 22 29 162000 212000 6000
33217-XL-S13685 150 49 37 49 345000 440000 4950
F-801627.32018-X-XL-S11890 140 30 24 32 195000 255000 5400
F-801573.32218-XL-S134890 160 40 34 425310000 360000 4800
F-808858.32219-XL-S14295 170 43 37 455355000 420000 4500
F-809631.TR1-H144375100 180 34 29 37 250000 325000 4000
32021-X-XL-S1245105 160 35 26 35 238000 330000 4650
F-804120.32026-X-XL-S1492130 200 45 34 45 385000 550000 3650
32028-X-XL-S154140 210 45 34 45 400000 590000 3450
F-804622.TR122814,605193,67528,5752,30228,575162000 310000 3500
F-809012.TR13681,5242,03241,27534,92541,275255000 540000 3200
F-801093.TR1-H1442891,778227,01230,1622,30230,162187000 395000 2950
Z-579007.TR1-H14464180 250 45 34 45 340000 650000 2600
F-804680.TR134818,415235,22933 28 34 234000 485000 2800
F-808438.TR169190 260 44 35 46 405000 680000 2750
F-801427.01.TR1-H14441195 250 33 28 34 243000 520000 2650
F-801019.TR1-H1445319,685257,17539,68830,16339,688260000 590000 2550
F-801094.TR1-H14435519,685254 27,78321,43328,575201000 400000 2700
F-809830.01.TR193199,949282,57549,21236,51246,038380000 680000 2700
Z-548100.01.TR1-H144
200,025276,22546,03834,13342,862340000 620000 2420
Z-548101.01.TR1-H144
203,987276,22546,03834,13342,862340000 620000 2420
Z-573160.TR1-H144
210 285 40 33 41 365000 730000 2310
F-804989.TR1
213 285 40 33 41 365000 730000 2310
F-801860.TR1-H144
2,15929,0013,17522,2253,175178000 360000 2450
Z-576050.TR1-H144
2,15928,57546,03834,92546,038360000 790000 2240
Z-578695.01.TR1
216,40828,57549,21334,92546,038360000 790000 2240
F-562964.TR1
2,165285 40 33 41 365000 730000 2310
Z-563839.TR1-H144
220 285 40 33 41 365000 730000 2310
F-801813.TR1
223,175300 48 38 50 410000 890000 2170
F-807285.TR1-H144
231,775300,0383,17523,81333,338238000 480000 2320
F-808788.TR1
231,7753,17552,38836,51247,625455000 830000 2090
Z-562497.TR1-H144
240 320 39 30 42 380000 670000 2070
Z-547734.TR1
2,5563,4296354,4455,715500000 1150000 1870
Z-547734.01.TR1
2,5563,4296354,4455,715460000 1140000 1870
Z-547733.01.TR1
257,175358,77576253,97571,438660000 1370000 1800
Z-547733.TR1
257,175358,77576253,97571,438720000 1370000 1800
F-801861.TR1
26,656325,4383,3472,548295206000 470000 2130
Z-517132.TR1-H144
2,92137,46547,62534,92547,625490000 1080000 1740

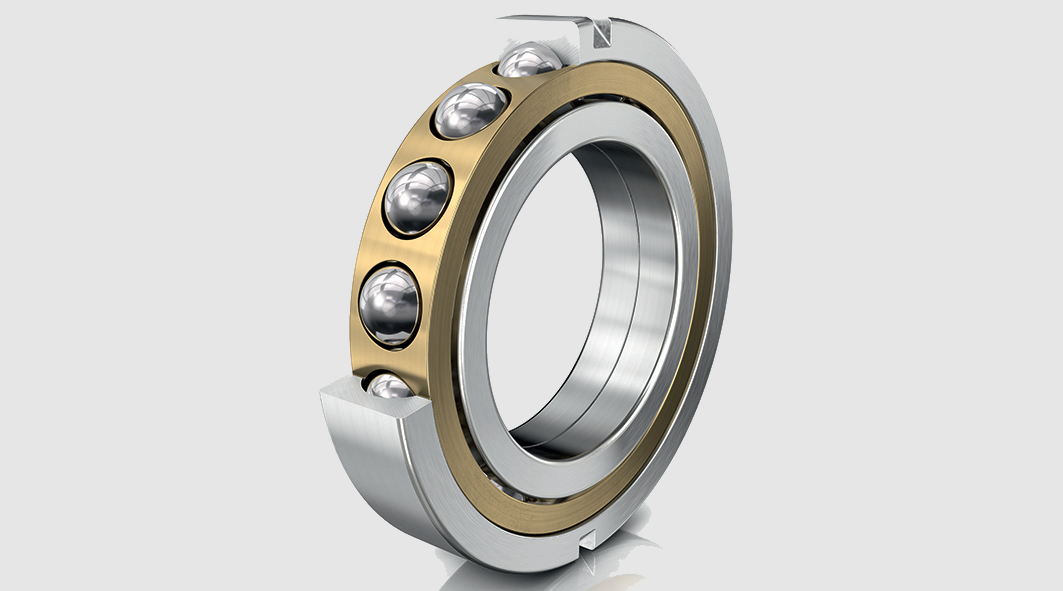

Four Point Contact Bearings


      Dimension table · Dimensions in mm
DesignationMass

m

≈ kg		DimensionsBasic load ratingsLimiting
speed
n

min
dDBdyn.
C
N		stat.
C0
N
QJ211-XL-N2-MPA-F59-C47555 100 21 77000 71000 12400
QJ212-XL-N2-MPA-F59-C494560 110 22 94000 87000 11200
QJ213-XL-N2-MPA-F59-C41265 120 23 106000 104000 10300
F-572543.KLQ14170 125 25 100000 106000 9000
QJ214-XL-N2-MPA-F59-C41370 125 24 118000 114000 9700
F-612995.KLQ4 75 170 352128000 130000 6200
QJ215-XL-N2-MPA-F59-C414575 130 25 123000 122000 9200
QJ216-XL-N2-MPA-F59-C417880 140 26 136000 137000 8600
F-801297.01.KLQ2385 149 28 153000 160000 8000
QJ217-XL-N2-MPA-T42F23185 150 28 158000 160000 8000
QJ218-XL-N2-MPA-F59-C42890 160 30 181000 185000 7400
QJ219-N2-MPA-F59-C434195 170 32 190000 212000 7000
QJ220-N2-MPA-F59-C4402100 180 34 224000 241000 6600
QJ221-N2-MPA-F59-C4481105 190 36 233000 255000 6200
QJ222-N2-MPA-F59-C4558110 200 38 249000 285000 5900
QJ224-N2-MPA-F59-C4674120 215 40 285000 340000 5400
QJ226-N2-MPA-F59-C4766130 230 40 295000 370000 5100
QJ228-N2-MPA-F59-C4969140 250 42 315000 420000 4700
QJ230-N2-MPA-A250-280122150 270 45 350000 485000 4350
QJ1032-N2-MPA-F59-C4635160 240 38 231000 335000 4750
QJ1034-N2-MPA-F59-C4868170 260 42 295000 430000 4350
